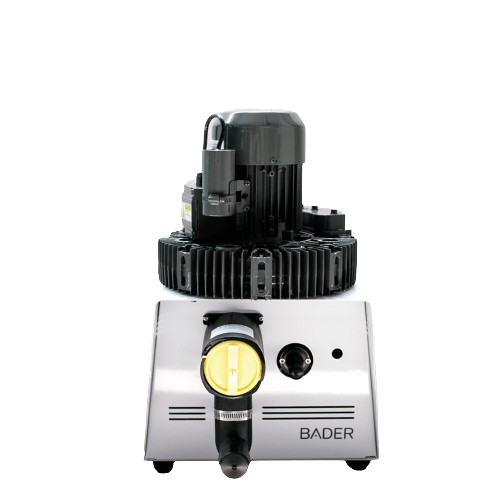

BADER® DENTAL 600 Suction Wet Ring Unit

VS Wet System Suction Unit for 2-3 Dental Units Overview: Type: Wet system suction unit (VS – VACUUM AND SEPARATION) Function: Centralized suction and separation for dental practices Key Features: Designed For: Generating a vacuum to suction saliva, rinse water, and other fluids during dental treatments Integrated Ventilation Nozzle: Ensures constant maximum suction capacity Airtight Suction Chamber: Prevents bacterial infection Quiet Operation: Sound level of 58 dB, suitable for small dental clinics Electric Motor: High-quality motor for continuous duty operation Rotation Speed: 2900 RPM Maximum Liquid Flow Rate: 3.9 L/min through surgical suction cannulae Central Suction Machine: Supports 2 to 3 workplaces No Drainage Required: At the base of the dental unit Air/Water Separation: Achieved through its mechanism Single Central Drain: Located in the engine room Technical Data: Suction Flow Rate: 500 L/min Positions with 60% Alternation: Supports 3 positions with 2 simultaneous jobs Sound Level: 58 dBA Solids Separator: Included for efficient waste management Electrical Efficiency: 0.58 – 0.68 kW Voltage: 230V (single-phase) Frequency: 50 Hz Control Unit: Includes electronic control for operational management Maximum Depression: -39 kPa Rotation Speed: 2900 RPM Size: 40 cm x 47 cm x 58 cm Weight: 28 kg Benefits: Efficient: Capable of handling high volumes of liquid waste with ease Hygienic: Airtight suction chamber prevents bacterial contamination Quiet: Low noise level ensures a comfortable environment for patients and staff User-Friendly: Integrated electronic control unit for ease of operation Compact Design: Space-saving dimensions ideal for dental clinical environments Flexible: Supports up to 3 workplaces, making it versatile for different clinic sizes Conclusion: The VS Wet System Suction Unit for 2-3 Dental Units is designed to meet the demanding needs of modern dental practices. Its efficient vacuum generation, coupled with a quiet operation, makes it an excellent choice for maintaining a clean and comfortable clinical environment. The inclusion of an airtight suction chamber and solids separator ensures hygiene and reliability, while its compact and user-friendly design enhances workflow efficiency.
