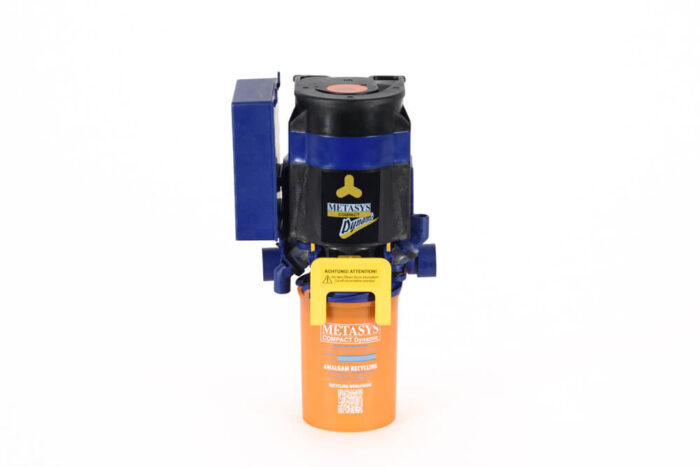

COMPACT Dynamic centrifuge with amalgam separation

Metasys COMPACT Dynamic amalgam separation centrifuge Separation module with integrated location selection valve The water and air separation module is equipped with its own location selection valve. This means that no additional installations are required. Self-cleaning centrifuge The centrifuge in module 3 ensures a high separation rate of up to 98.6 % (MST 1). In addition, the centrifuge is self-cleaning after each STOP. This results in extremely quiet operation and high functional safety. Various applications The various mounting versions as well as customary applications available for all common treatment units enable effortless and, above all, fast installation. Features: Power supply: 24 V AC Frequency: 50/60 Hz Max. consumption current: 2 A Max. consumption Power: 46 VA Max. flow of water: 4.5 l/min Max. flow of water from cuspidor: 3.0 l/min Max. flow water flow from suction line: 1.5 l/min Negative pressure zone: 80 mbar – 250 mbar Separation rate: 98.6% Collecting vessel volume: 300 cm3 Dimensions (H x W x D): 305 x 210 x 104 mm DIBT (German Institute for Civil Engineering) approval number: Z‐64.1‐4 Supply includes: Basic installation kit Warranty: *36 months. Self-cleaning system. *Maintenance required.
