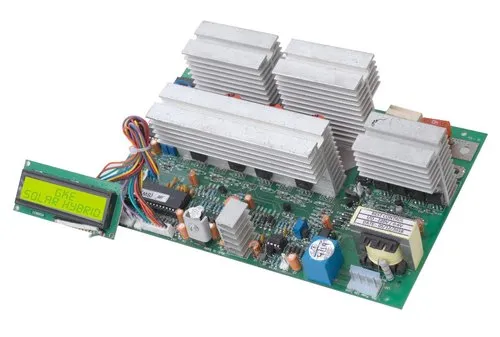

Solar Hybrid / PCU Sine Wave Inverter kit

Rated Power (Watt 850 VA- 1100 VAInput Voltage12 VPhaseSingleModel Name/Number GKE-SWSOLAROutput Voltage 230 VCapacity 850 VA - 1100 VABrand GKEGrid Type Off GridWarranty 1 YearOutput Frequency 50 hzPower Factor 0.8GKE- SWSOLAR850 VA-1100 VA  / 12 VModel850VA-1100VA 12VI/P Range Normal Mode100V-290 VI/P Range UPS mode 180V-265 VO/P Voltage battery mode 230 VO/P Frequency 50 HZO/P Waveform    SinewaveSolar Charging Current 40 A / 60 AMaximum PV rating 500W /750WMaximum PV Open circuit voltage 22 VCharging Cutt off ( Mains) 14.0 VCharging cutt off ( Solar ) 14.5 VAutomatic Temperature  Compensation YesSolar Charging type PWMTechnology MosfetSolar Hybrid PCU Sine Wave Inverter KitGKE SOALR Hybird PCU Sine Wave Inverter kitis an integrated system consisting of a solar charge controller. Inverter and an AC mains charger. System gives priority to Solar Power first and uses Grid power only when Solar power/ Battery charge is insufficient to meet the load requirements. Battery Voltage, Solar power output and the load are continuously monitored. When Batteries are charged to preset level the Solar UPS automatically cuts off from the system and load runs through the UPS using the batteries. Maximum battery charging is done through the solar to reduce the energy used from grid power.FEATURES:-Most advanced integrated Solar backup.Automatic utilization of the available Solar power in an intelligent manner.Preference to Solar power when available.Pure sinewave output in the backup mode.Heavy duty battery charger with current sharing.Option to switch off grid charger. (If solar current>3Amp)Selectable Normal/Tubular battery charging.Multiple stage battery charger to keep battery in top condition.Smart overload and short circuit protection. Intelligent thermal management system.LCD display to monitor the system.LCD DisplayWhen Grid Power PresentDisplays – AC Voltage , Battery Charging status , Battery level , solar Module status , Solar Charging Current , Mode In back upDisplays – Back up mode On/off, Hybird mode on/off, Battery level , Load level in %, Solar PV status Fault ConditionsDisplays- Battery low , Overload , Short cicuit, Mains Failure, Fuse blown, Temperature high, no load. Download There have been no reviews for this product yet. Please Login to submit a review
