Dreambox - COMPACT fleece filter / fleece automatic version

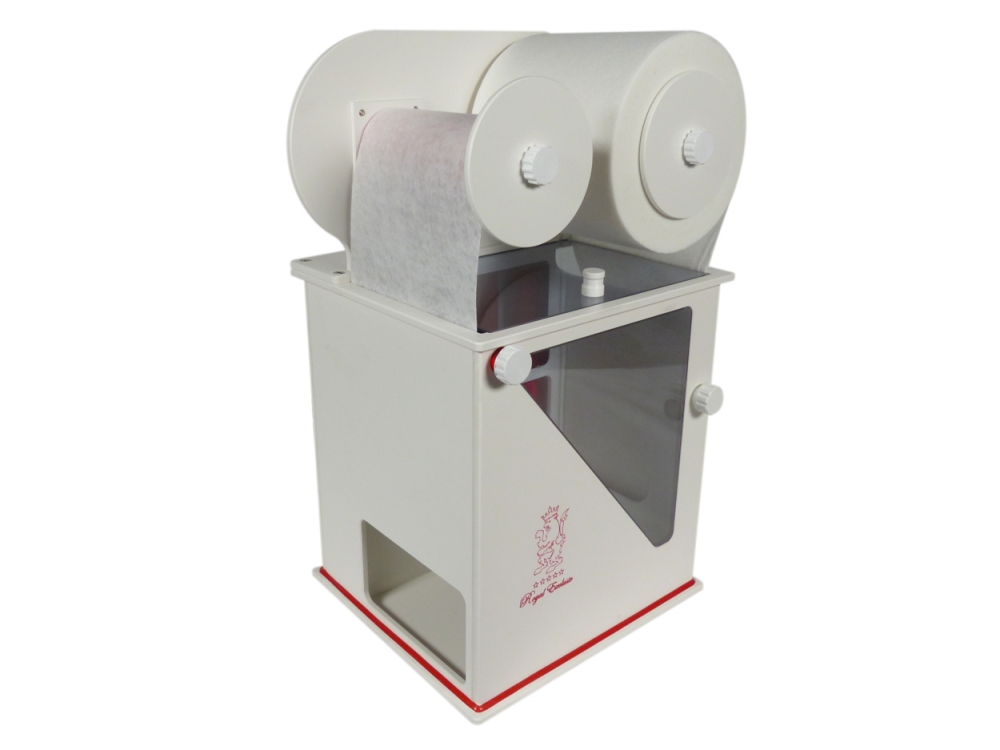

Dreambox® – COMPACT inclined bed – fleece filter – automatic version Technical information: Dimensions: 30 cm long x 33 cm deep x 60 cm high Flow: ~ min. 500 – max. 6000 liters Minimum water level: 13cm, maximum water level 18-20 cm 1x standard fleece roll upon delivery 40 grams incl. incl. control unit with timer and switch (ON-OFF-AUTO) Fleece filter made of white 8 mm PVC with 6 mm clear PVC discs. including pipe openings with connection pipes Intake 40/32 mm red pipes Drainage - standard through openings in the bottom Optional (35 euros per pipe) additional pipe connections possible 40 mm optional, left or right side panel (please specify when ordering, standard ONLY above) Lid opening for easy cleaning/roll changing made of high-quality rigid PVC and PVC-CAW Hot gas welded not glued, by plastic welding Significantly more break-resistant, shockproof and lighter 100% Made in Germany / Assembly by hand 30 years of experience in PVC filter and skimmer construction The advantages in detail: > Massive and heavy construction, 8 mm PVC-CAW, hot gas welded > easy roll changing system > Available as a hand-operated model or as a fully automatic model > Hand-operated models are already prepared for later upgrading to a fully automatic machine > Timer function, with integrated run-on relay, adjustable from 0 to 10 seconds (control of fleece discharge) > 12 volt technology > Height-adjustable sensor, German make > 12 volt planetary gear motor with plenty of torque (5 Nm) > Internal gear drive, overload and shatterproof, developed by Klaus Jansen (CEO and founder of Royal Exclusiv) > internal overflow protection > Integrated drainage chamber for effective water calming > Standard with 2 inlet pipes, 40 and 32 mm > prepared to connect additional 3 x 40 mm pipes > Includes cover > Quiet operation > Reel can be unscrewed > Grade 2 titanium screws, rustproof > Roll holder on the right, can also be unscrewed > Basic dimensions : 30 x 33 cm, overall height : 59 cm, height without reel : 35 cm > Minimum water level 13, maximum water level 18-20 cm > Max. flow rate with a fleece width of just under 20 cm: up to 6000 liters (12.000 liter model in preparation) > incl. ring grooves in the floor to jack up the fleece with 40 mm PVC tubes > Jacking tubes in 5 cm range available from us. Necessary if the water level in the filter is over 20 cm > Control electronics of the fully automatic machine with 3 operating states: OFF - ON (permanently on / fleece rolls up) - AUTO (sensor operation)
