Digital Terrestrial ISDB-T TV Tuner Receiver Set-Top Box Fully HD 1080P H.264 USB Decoder for Brazil Chile Peru

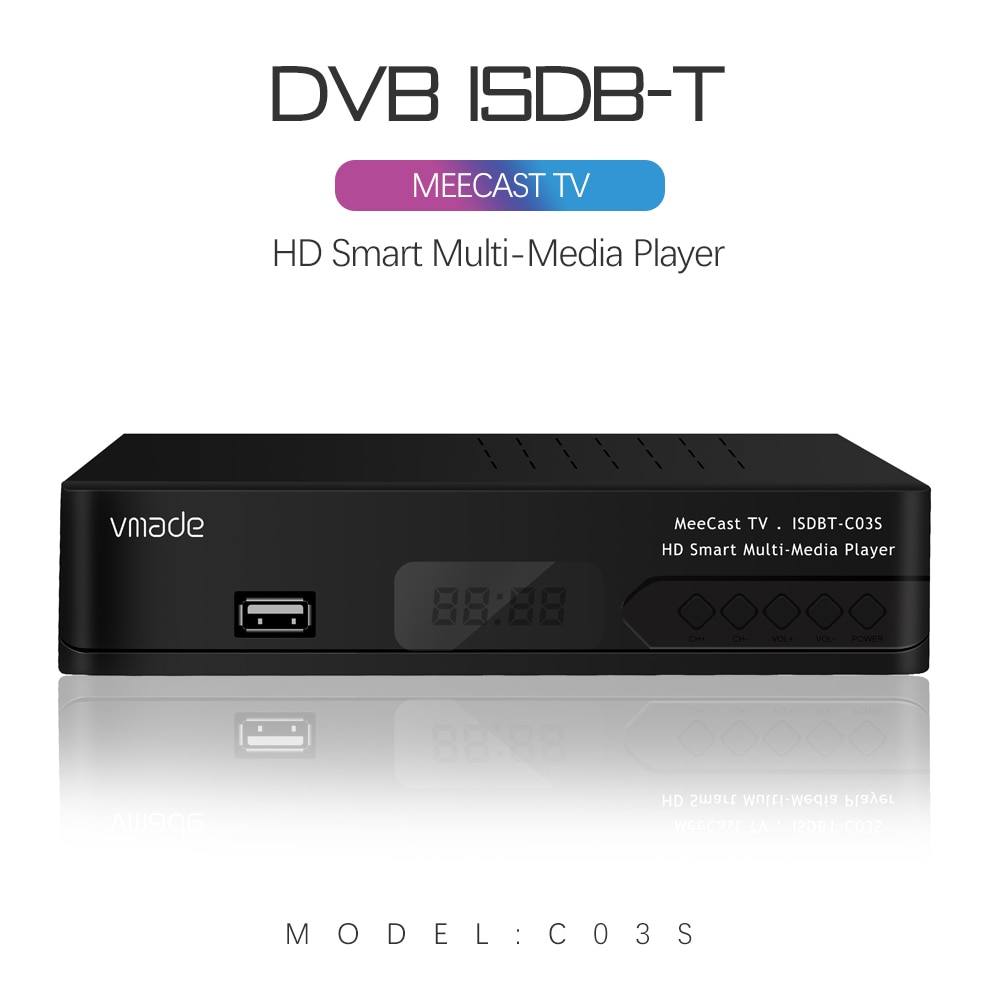

Table of Contents Toggle New front designFAQ Digital Terrestrial ISDB-T TV Tuner Receiver Set-Top Box Fully HD 1080P H.264 USB Decoder for Brazil Chile Peru New front design ISDB-T digital tv box tuner 2023 latest the newest model ISDB-T digital tv box tuner 2023 latest newest model back view Sell HD ISDB-T free and receive free TV set-top box spot promotions in South America, Costa Rica. Philippines, Maldives, and Botswana. Note: ISDB-T is applicable to the following countries:: Philippines, Maldives, Argentina, Brazil, Chile, Bolivia, Botswana, Costa Rica, Ecuador, Guatemala, Paraguay, Peru, Sri Lanka, Uruguay, Venezuela Model ISDB-T Hardware CPU MSTAR-MSD7805(128 pin)MIPS 34Kf@600MHz Memory 32X16Mbit DDR2 Frequency1066 Flash 32M bytes Demodulator Type ISDB SOc Chip Set TUNER Rafael R836 Front Panel USB 2.0 Embedded One Host, 4-digit LED display on front panel red LED Standby,green LED Lock Panel KEY,POWER,CH ,CH- Rear Panel Tuner RF input connector EC-type IEC169-2 Female Tuner RF Loop through connector IEC-type IEC169-24 Male HDMI V1.3/V1.4 RCA CVBS AL AR Connector x1 Ypbpr RCAx1 Coaxial x1 Power AC100~240V 50Hz/60Hz Demodulation Terrisal Receiver Standard ISDB-T broadcast (1,3,13 segment) Input RF Frequency VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz. Bandwidth 6MHz Demodulatio QPSK/16QAM/64QAM/QPSK or DQPSK FEC 1/2,2/3,3/4,5/6,7/8 Automatic Guard Interval 1/4,1/8,1/16,1/32 FFT Mode 2K/8K/32K Input level -83–5dBm Sortware Features ·used for any ISDB-T countries like Brazil,Peru,Argentina,Chile,Venezuela,PhilippinesEcuador ·Supports all ISDB-T broadcast (1,3,13 segment),MPEG-2/MPEG-4 AVC/H.264 HD/SD Video,DiVX compliant ·Support 3D interface ·Support teletext/subtitle/muti-language ·Supported 7-Day EPG function,VBI Teletext ·AUTO,16:9 Pillar Box,16:9 Pan G Scan,4:3 Letter Box,4:3 Pan G Scan,4:3 Full,16:9 Wide Screen ·USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback ·Video output resolution:480i/576i/480p/576p/720p/1080i/1080P Decoder Video Decoder Compliant with:MPEG-4 part10/MPEG-2 ISO/IEC 13818 MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) MPEG-2 Main Profile#Main Level(15Mbps) H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps) Audio Decoder MPEG-1,MPEG-2(Layer I/II),MP3,AC-3(Dolby Digital),AAC-LC,WMA E-AC-3(Dolby Digital Plus)decoding HE-AAC 5.1 multi-chhannel decoding Powerful Multimedia Features MediaCodec avi.mpg,dat,.vob,.div,.mov,.mkv,jpeg,.ts etc Audio Codec WMA,MP3,AAC(.wma,mp3,m4a) Photo Codec JPEG,BMP,PNG License Optional DTS,Dolby Digital,Dolby Digital Plus,RM/RMVB,Divx License. Accessories Accessories gift box AV cable TV BOX IR remote control User Manual FAQ Q: How can I connect this ISDB-T digital terrestrial TV tuner to the Internet? A: This ISDB-T digital TV tuner is primarily designed for receiving terrestrial TV signals via antenna and does not have built-in Wi-Fi or Ethernet connectivity. To enable Internet access (if supported by your set-top box or system), you can use an external USB Wi-Fi adapter: Connect a USB Wi-Fi antenna/adaptor to the USB port of the set-top box or compatible device. We recommend using a plug-and-play USB Wi-Fi adapter that does not require additional driver installation. Once connected, configure the Wi-Fi network through the device’s system menu. Note: Internet connectivity depends on whether the connected set-top box or system software supports network functions. The tuner itself is used for TV signal reception and does not provide Internet streaming features.
