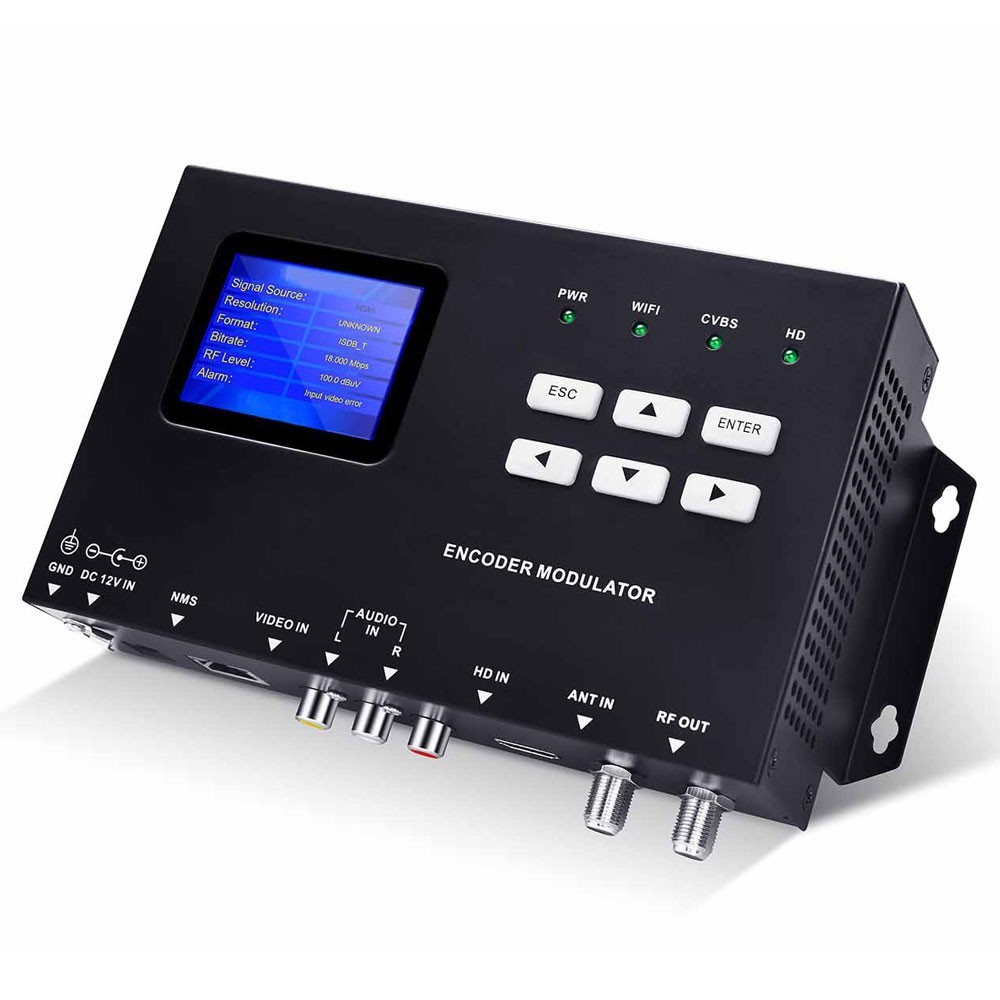

Table of Contents Toggle FeaturesSpecificationGallery ISDB-T modulator encoder ISDB-T modulator encoder Digital HDMI CVBS in DVB-T ISDB-T RF out Converter ISDB-T modulator encoder This is a wall-mounted digital modulator whose working principle is to provide the input HDMI signal or CVBS signal to the H.264 encoder and output it as a standard DVB-T or ISDB-T RF signal. With simple front panel controls, you can complete system settings in a few minutes. It is composed of A/D, encoding, modulation, and frequency conversion, and can provide 6/7/8MHz bandwidth for selection. It aims to realize CVBS and HDMI input, and can also support standard H.264 encoding. It is an excellent choice to transmit video/audio signals from TV satellite receivers, surveillance cameras, or video/media players to LCD TVs or set-top boxes. Features Support H.264 Full HDMI video encoding Support RF loop-through Support LCN mode and remote key ID selection Operation and control via NMS High integration, high performance, fully functional integrated design Single input modulator can convert analog A/V or digital HDMI source to DVB-T or ISDB-T channel Standard COFDM modulation and H.264 encoding Multiple video format compatibility, including 576i (PAL) / 480i (NTSC) / 1080p Bandwidth: 6/7 / 8MHz Frequency range: 50~860MHz Continuously adjustable RF signal output level range from 100dBuV to 70dBuV, step 1dBuV 2.4-inch color LCD monitor Small size and lightweight Operator 2K and 8K User-friendly settings and controls Compact and wall-mounted Specification Encoding Input Connector HDMI 1.4 or CVBS VIDEO Encoding H.264 Input Resolution 1920*1080_60P; 1920*1080_50P; 1920*1080_60i; 1920*1080_50i; 1280*720_60P; 1280*720_50P 720*480_60i; 720*576_50i Bitrate 2 ~ 18 Mbps AUDIO Encoding MPEG 1 Layer II Sample Rate 32K/ 44.1K/ 48KHz Bitrate 384kbps Modulation DVB-T Standard DVB-T COFDM (6/7/8 M) Constellation QPSK,16QAM,64 QAM MER ≥ 38 dB Code Rate 1/2, 2/3, 3/4, 5/6, 7/8 Guard Interval 1/32, 1/16, 1/8, 1/4 Transmission Mode 2K,8K ISDB-T Standard ARIB STB-B31 (6M) Constellation 16QAM, 64QAM MER ≥ 38 dB Code Rate 1/2, 2/3, 3/4, 5/6, 7/8 Guard Interval 1/32, 1/16, 1/8, 1/4 Transmission Mode 2K,4K,8K RF Output Level ≥ 30dBmV Output Frequency Range 100 ~ 999.999 MHz Out-band Rejection ≥ 60dB System Management TFT Control Keys; NMS; APP LCN Insertion YES Language English Upgrade NMS General Power Supply DC12V 1A Power Consumption <10W Weight 1.5KG Dimension 199*109*61.7 (mm) Gallery ISDB-T modulator encoder DVB-t modulator encoder
